MAX Outdoor Router

MAX BR1 IP55

IP55 Single Cellular Router

The BR1 IP55 offers embedded MIMO directional and Omni antennas that can be configured on the fly, plus built-in PoE and a 3-port switch, all enclosed in a durable and waterproof IP55 enclosure.

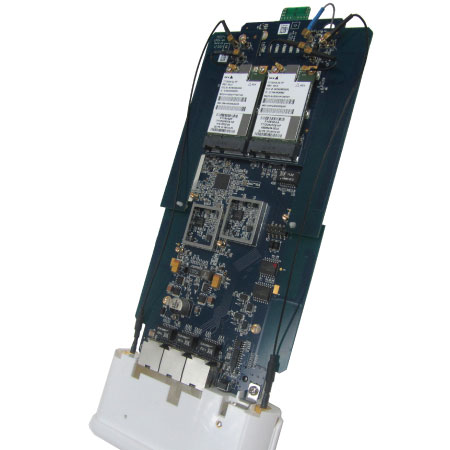

Embedded MIMO Directional and Omni Antennas

The BR1 IP55’s built-in MIMO directional and Omni antennas. It also has external cellular antenna connectors, which are software selectable. So, it’s easy to optimize antenna performance at any time.

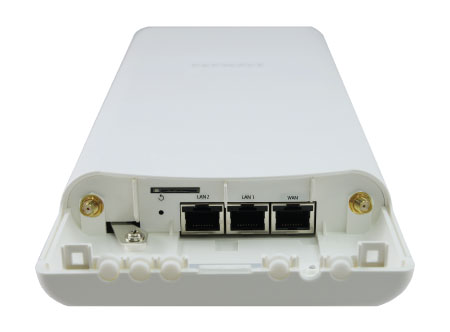

Built-in PoE and 3-Port Switch

The BR1 IP55 includes built-in PoE input and a 3-port LAN switch to reduce clutter and the need for extra equipment. 802.3af PoE output is optional add-on, so one wire is all you need for both connectivity and power you can share with security cameras and other devices.

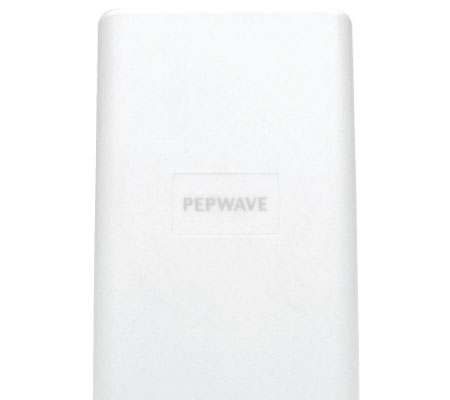

Waterproof IP55 Enclosure

Deploy the BR1 IP55 with confidence in harsh indoor and outdoor environments. Its waterproof IP55 metal enclosure stands up to dust, vibration, and inclement weather, making it a great choice for industrial, emergency, and other heavy-duty applications.






Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.




Model Comparison

Model MAX BR1 IP55 MAX BR2 IP55 MAX HD2 IP67
Ethernet WAN Ports 1 (FE) 1 (FE) 1 (GE)
Ethernet LAN Ports 2 (FE) 2 (FE) 1 (GE)
Embedded 4G LTE/3G 1 2 * 2
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
Wi-Fi WAN 1 ● ● ○
Wi-Fi AP 1 ● ● ○
Wi-Fi Standard 802.11b/g/n
300 Mbps 2x2 MINO		 802.11b/g/n
300 Mbps 2x2 MINO		 ○
Transmit Power (2.4GHz) 28dBm 28dBm ○
Transmit Power (5GHz) ○ ○ ○
Recommended Users 2 1-25 1-25 1-50
Router Throughput 3 100Mbps 100Mbps 100Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover ● ● ●
SpeedFusion Bandwidth Bonding ○ ● ●
Number of PepVPN SpeedFusion Peers 2 2 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 60Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 30Mbps
Central Management
InControl Cloud Management ● ● ●
GPS Fleet Management ○ ○ ○
AP Controller Functionality
Manage Pepwave AP Series ○ ○ ●
Maximum Number of AP Support ○ ○ 10
Hardware Features
Enclosure Outdoor IP55 All-Weather Outdoor IP55 All-Weather Outdoor IP67 All-Metal
PoE Output Up To Two 802.3af or 48V Pepwave Passive PoE Outputs Up To Two 802.3af or 48V Pepwave Passive PoE Outputs ○
Dimensions 1.6 x 10.2 x 5.7 inches
39.5 x 260 x 143 mm		 1.6 x 5.0 x 5.8 inches
40 x 128 x 147 mm		 9.0 x 12.2 x 2.6 inches
230 x 310 x 66 mm
Weight 2.65 pounds
1.2 kg		 0.96 pounds
435 grams		 5.84 pounds
2.65 kg
Operations
Power Input Pepwave Passive PoE: 12V - 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output) *		 Pepwave Passive PoE: 12V - 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output) *		 Power over Ethernet 802.3at *
DC: 10V - 30V, 3A
Power Consumption Max.: 16W, Typical: 11W, Min.: 8W Max.: 16W, Typical: 11W, Min.: 8W 25W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C		 -40° – 149°F
-40° – 65°C		 -40° – 149°F
-40° – 65°C
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS ● ● ●
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)		 ○ ○ ●
Certifications – Motor Vehicle
E-Mark ○ ○ ●
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance		 ○ ○ ●
EN 61000: Electromagnetic Compatibility ○ ○ ●
Warranty
1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 Cache Throughput refers to the speed of routing content from hard disk to LAN.
* MAX BR2 IP55 supports two embedded 3G modems only.
^ 48V Pepwave Passive PoE for BR1/BR1 IP55 and 802.af PoE Injector for HD2 IP67 are available separately.


Ordering Information

Product Code Carrier Embedded Modem 4G Bands/Frequencies (MHz) 3G Bands/Frequencies (MHz) VPN Functionality
4G LTE MAX-BR1-LTE-US-IP55 AT&T/T-Mobile 1 4G LTE:
B2/1900, B4/AWS, B5/850, B13/700, B17/700, B25/1900		 WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+:
B1/2100, B2/1900, B4/AWS, B5/850, B8/900
EV-DO Rev.A:
BC0/800, BC1/1900, BC10/800		 PepVPN
MAX-BR1-LTE-E-IP55 Europe/International 1 4G LTE
B1/2100, B3/1800, B7/2600, B8/900, B20/800		 WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+:
B1/2100, B2/1900, B5/850, B6/800, B8/900		 PepVPN
3G MAX-BR1-AE-IP55 Worldwide 1 - WCDMA/HSDPA/HSUPA/HSPA+:
B1/2100, B2/1900, B5/850, B6/800, B8/900
EDGE/GPRS/GSM:
B2/1900, B3/1800, B5/850, B8/900		 PepVPN
MAX-BR2-AE-IP55 Worldwide 2 - WCDMA/HSDPA/HSUPA/HSPA+:
B1/2100, B2/1900, B5/850, B6/800, B8/900
EDGE/GPRS/GSM:
B2/1900, B3/1800, B5/850, B8/900		 PepVPN, and Optional SpeedFusion Bonding
MAX-BR2-AE-SF-IP55 Worldwide 2 - WCDMA/HSDPA/HSUPA/HSPA+:
B1/2100, B2/1900, B5/850, B6/800, B8/900
EDGE/GPRS/GSM:
B2/1900, B3/1800, B5/850, B8/900		 SpeedFusion Bonding


MAX BR1/BR2 IP55 – Feature Add-on

Product Code Feature Pack Description
ACW-109 PoE Kit for IP55 Outdoor Products Include 48V Pepwave Passive PoE Injector

Enable 802.3af/48V Pepwave passive PoE output (PoE License automatically applied after kit purchase)
ACW-510 Ball Joint Mount for IP55 Outdoor Products Wall/pole mount with flexible ball-joint for high-precision installation.


MAX BR1/BR2 IP55 – PoE Option

PoE Input PoE Output Description
12V Pepwave passive PoE input No PoE output Standard feature. Package includes 12V Pepwave passive PoE. Powers up the device. Does not provide PoE output.
48V Pepwave passive PoE input Up to two 802.3af/48V Pepwave passive PoE output Requires PoE Kit for IP55 Outdoor Products (ACW-109). Powers up the device. Provides up to two 802.3af/48V Pepwave passive PoE output.



Technical Specifications


Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support 1
  • IPsec VPN (Network-to-Network) 2
    • X.509 Certificate Support 1

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Captive Portal Support

  • Support for Wired and Wireless LAN clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Power Requirements

Pepwave Passive PoE
  • 12V – 48V DC
  • 48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output

Package Content

  • MAX BR1 IP55
  • Pepwave Passive PoE Injector


1 Feature is available as an upgrade.
2 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

All specifications are subject to change without notice.
