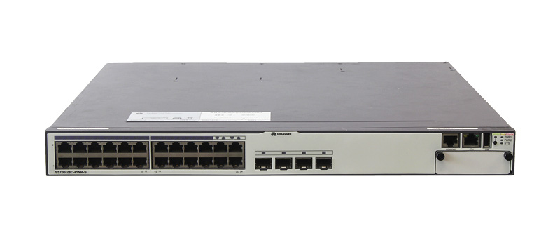

S5700-SI Series Standard Gigabit Switches

High-performance hardware tightly integrated with Huawei’s Versatile Routing Platform (VRP) software, in a highly scalable, energy-efficient Gbit/s access or aggregation switch.

Flexible networking options and intelligent iStack technology make the S5700-SI easily scalable, and simple to operate and maintain.

Comprehensive security features defend against DoS and user-targeted cyberattacks; dynamic policy provisioning simplifies user authentication, improving QoS performance.


Choose Huawei S5700 Series Switches to provide Gbit/s access for wired and wireless devices throughout the enterprise network

  • ŸIntelligent iStack technology virtualizes multiple switches into one logical switch, improving device reliability and simplifying configuration and management
  • Flexible networking through STP, RSTP, and MSTP protocols, Smart Link and SEP technology
  • Diversified security mechanisms: MAC address, 802.1x, and portal authentication mechanisms; dynamic provisioning of user access policies including VLAN, QoS, and ACL policies
  • Huawei’s Easy Operation enables zero-touch installation, configuration-free replacement, and remote batch-mode upgrades


Specifications S5700-24TP-SI
S5700-26X-SI-12S-AC S5700-48TP-SI-AC

Fixed Ports 24 x 10/100/1000 Base-T, two GE SFP combo 12 x 10/100/1000 BASE-T, 12 x 100/1000 Base-X, 2 x 10 GE SFP+ 48 x 10/100/1000 Base-T, two GE SFP combo 48 x 10/100/1000 Base-T
Extended Slots
  • The S5700TP provides a stacked extended slot.
  • The S5700C series switch provides two extended slots, one for an uplink sub-card and the other for a stack card.
MAC Address Table
  • IEEE 802.1d compliance
  • MAC address learning and aging
  • Static, dynamic, and blackhole MAC address entries
  • Packet filtering based on source MAC addresses
  • 16K MAC
  • VBST (compatible with PVST/PVST+/RPVST)
  • LNP (similar to DTP)
  • VCMP (similar to VTP)
Access Security DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI
Management and Maintenance
  • Intelligent stacking (iStack)
  • Virtual cable test
  • Remote network monitoring (RMON)
  • eSight and web-based NMS
  • Auto-config and Easy Operation
  • SNMP v1/v2c/v3
  • System logs and multi-level alarms
  • 4K VLANs
  • Guest VLAN and voice VLAN
  • Super VLAN
  • GVRP
  • 1:1 and N:1 VLAN mapping
  • VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
Ring Network Protection
  • STP, RSTP, and MSTP
  • Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
  • RRPP ring topology and RRPP multi-instance
  • G.8032 Ethernet Ring Protection Switching (ERPS)
  • Smart Ethernet Protection (SEP)
  • BPDU protection, root protection, and loop protection
  • BPDU tunnel
  • Ethernet OAM (IEEE 802.3ah and 802.1ag)
  • ITU-Y.1731
  • Enhanced Trunk (E-Trunk)
  • DLDP
  • LACP
IP Routing
  • Static route
  • Layer 3 dynamic route
