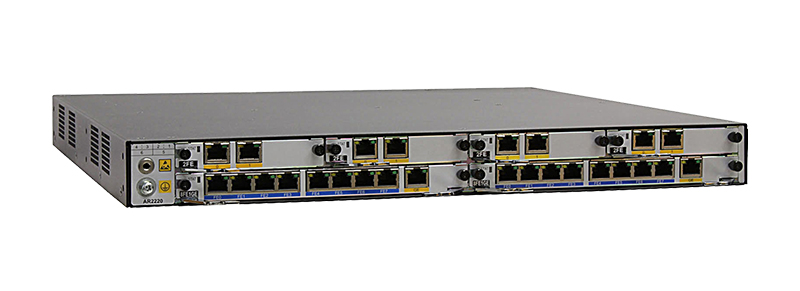

AR2200 Series Enterprise Routers

Scalable and secure, unified voice and data communications for medium-sized enterprise headquarters and branch offices. Gbit/s routing and switching are integrated into a single device, reducing TCO.

Native WLAN support combined with non-blocking switching fabric architecture provides resilient multimedia communications with comprehensive security features — including built-in firewall and continually updated mechanisms to defend against malicious attacks.

The AR2200’s modular design lets you configure and upgrade ports as needed — from Digital Signal Processor (DSP) support to Smart Interface Cards (SICs) to customize speeds and interfaces.


Stay ahead of evolving LTE communications with flexible, configurable AR2200 Series Enterprise Routers for wired and wireless 3G access

  • AR2200s include built-in firewalls, provide IPS and URL filtering, 802.1x, MAC, and portal authentication, and support IPSec VPN, EVPN, DSVPN, and Smart VPN secure access
  • Crisp, clear voice communications are assured by built-in BPX, SIP server, and SIP gateway functions; interfaces are provided for connection to third-party NGN/IMS/PBX terminals
  • Switching Router Units (SRUs) on AR2240 main control boards are configurable and upgradable for added flexibility
  • Millisecond fault detection and link backup ensure high availability; line cards are hot-swappable without disrupting service
  • Provides multiple 3G/LTE modes; supports high-speed wireless ACs and multiple APs; integrated wired and wireless access



Specifications

Specifications AR2201-48FE AR2202-48FE AR2220 AR2220E AR2240
WAN Speed with Services 200 Mbit/s 200 Mbit/s 400 Mbit/s 800 Mbit/s 1 Gbit/s (with SRU40)
2 Gbit/s (with SRU80)
4.5 Gbit/s (with SRU200)
Fixed WAN Ports 2 x GE (1 x Combo), 2 x FE (provided by the Ethernet switch ports) 2 x GE (1 x Combo), 1 x E1, 1 x SA, 2 x FE (provided by the Ethernet switch ports) 3 x GE (1 x combo) 3 x GE (1 x combo) 3 x GE (2 x combo) / 4 x GE Combo + 2 x 10 GE
Fixed LAN Ports 48 x FE 48 x FE - - -
SIC Slots 0 0 4 4 4
WSIC Slots (default/max.) 0 0 2/4 2/4 2/4
XSIC Slots (default/max.) 0 0 0/2 0/2 2/4
Wireless Controller
Wireless Controller is integrated in software
Maintenance U-disk deployment supported U-disk deployment supported
  • All interface cards support hot swapping.
  • U-disk deployment supported
  • All interface cards support hot swapping.
  • U-disk deployment supported
  • All interface cards support hot swapping.
  • U-disk deployment supported
Memory 512 MB 512 MB 2 GB 1 GB 2 GB/8 GB
Flash 512 MB 512 MB 2 GB/4 GB 2 GB/4 GB 2 GB/4 GB
Power Supply AC: 100V to 240V, 50/60 Hz AC: 100V to 240V, 50/60 Hz AC: 100V to 240V, 50/60 Hz

DC: 48V to 60V
AC: 100V to 240V, 50/60 Hz

DC: 48V to 60
AC: 100V to 240V, 50/60 Hz

DC: 48V to 60V

Redundant power supply: internal AC and DC
Rack Height 1 RU 1 RU 1 RU 1 RU 2 RU
Dimensions (H x W x D) 44.5 mm x 442 mm x 310 mm 44.5 mm x 442 mm x 310 mm 44.5 mm x 442 mm x 420 mm 44.5 mm x 442 mm x 420 mm 88.1 mm x 442 mm x 470 mm
