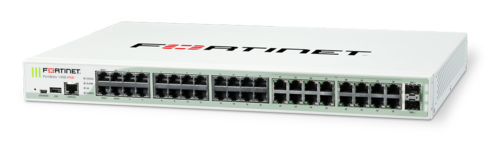

Connected UTM - FortiGate 100 Series
The FortiGate-100 series of all-in-one Network Security Appliances deliver Fortinet’s Connected UTM solution in a range of appliances to match your unique requirements. With Connected UTM you get a single device that integrates comprehensive enterprise-grade security protection with a broad range of wired and wireless connectivity options.
Connected UTM optimizes your complex network and makes it easier for your IT staff to improve your security, simplify your infrastructure, and lower your TCO. The FortiGate-100 series offers you a wide range of choices:
- Extremely high port density supports your growing network, with up to 42 1-gigabit Ethernet interfaces on the FortiGate-140D models.
- Power over Ethernet (PoE) Support allows you to connect Wireless Access Point, 3G4G Extenders, VoIP Handsets and IP Cameras to your network security platform and away from power supplies.
- The FortiGate Rugged-100C is an industrially hardened security appliance for harsh electrical and environmental conditions, including high levels of electrical and radio-frequency interference and wide ambient temperature ranges.
With simple per-device pricing, you can deploy a high-performance, highly secure remote infrastructure with one appliance that’s easy to set up and centrally manage.
| Product Name | FortiGate-140D-POE-T1 | FortiGate-140D | FortiGate-140D-POE | FortiGate-100D | FortiGateRugged-100C |
|---|---|---|---|---|---|
| Firewall Throughput 1518 Bytes | 2.5 Gbps | 2.5 Gbps | 2.5 Gbps | 2.5 Gbps | 2 Gbps |
| Firewall Throughput 512 Bytes | 1 Gbps | 1 Gbps | 1 Gbps | 1 Gbps | 1 Gbps |
| Firewall Throughput 64 Bytes | 200 Mbps | 200 Mbps | 200 Mbps | 200 Mbps | 180 Mbps |
| Firewall Max Concurrent Session | 3 Million | 3 Million | 3 Million | 3 Million | 2.5 Million |
| Firewall New Sessions per second | 22,000 | 22,000 | 22,000 | 22,000 | 22,000 |
| IPS Throughput | 950 Mbps | 950 Mbps | 950 Mbps | 950 Mbps | 950 Mbps |
| IPSec Throughput 512 Byte Packet | 450 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | 60 Mbps |
| Antivirus Throughput (Proxy) | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps |
| Total Network Interfaces | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch including 16x with POE, 1x T1 | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch; | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch including 16x with POE | 2 x WAN, 1 x DMZ, 1 x MGMT, 2 x HA, 16 x INTERNAL ports, 2x SFP shared media with RJ45, all are 10/100/1000 ports | 2 x 10/100/1000 RJ45 ports, 4 x 10/100 RJ45 ports and 4 x 100Base-FX SC MM Fiber ports |
| Total Storage Capacity | 32GB MLC | 32GB MLC | 32GB MLC | 32GB MLC | 0 |
