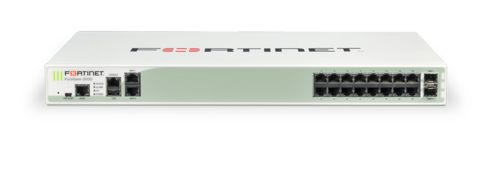

Next-Gen Firewalls (NGFW) - FortiGate 200 Series
The FortiGate 200 series of Next Generation Firewalls (NGFWs) deliver 2 Gbps of Next Generation Threat Protection and 4 Gbps of firewall throughput. This is 5 times the next gen performance compared to other leading NGFWs and allows organization to increase protection yet still consolidate devices. The FortiGate 200 series also includes up to 54 gigabit Ethernet (RJ45) and multiple 1GbE (SFP) ports, as well as power over ethernet (POE) as an option. This combination of performance, port density and connectivity simplify your network and reduce administration, making it an ideal hardware platform for mid-sized businesses and enterprise branch locations.
Powered by FortiOS, these appliances provide visibility into and control over more than 3000 applications, top rated Intrusion Prevention and Antimalware and actionable Reporting. Organizations can optionally add Web Filtering, Advanced Threat Protection or Strong Authentication to extend their FortiGate next generation firewall to consolidate a Secure Web Gateway (SWG) or address the challenges posed by Advanced Persistent Threats (APTs) and Bring-Your-Own Device (BYOD) programs.
| Product Name | FortiGate-280D-POE | FortiGate-240D | FortiGate-240D-POE | FortiGate-200D | FortiGate-200D-POE |
|---|---|---|---|---|---|
| Firewall Throughput 1518 Bytes | 4 Gbps | 4 Gbps | 4 Gbps | 3 Gbps | 3 Gbps |
| Firewall Throughput 512 Bytes | 4 Gbps | 4 Gbps | 4 Gbps | 3 Gbps | 3 Gbps |
| Firewall Throughput 64 Bytes | 4 Gbps | 4 Gbps | 4 Gbps | 3 Gbps | 3 Gbps |
| Firewall Max Concurrent Session | 3.2 Million | 3.2 Million | 3.2 Million | 3.2 Million | 3.2 Million |
| Firewall New Sessions per second | 77,000 | 77,000 | 77,000 | 77,000 | 77,000 |
| IPS Throughput | 2.1 Gbps | 2.1 Gbps | 2.1 Gbps | 1.7 Gbps | 1.7 Gbps |
| IPSec Throughput 512 Byte Packet | 1.3 Gbps | 1.3 Gbps | 1.3 Gbps | 1.3 Gbps | 1.3 Gbps |
| Antivirus Throughput (Proxy) | 600 Mbps | 600 Mbps | 600 Mbps | 600 Mbps | 600 Mbps |
| Total Network Interfaces | 84x 10/100/1000 RJ45 LAN(32x support POE), 4x SFP DMZ, 2x 10/100/1000 WAN, 1x 10/100/1000 MGMT port. | 40x 10/100/1000 RJ45 LAN, 2x SFP DMZ, 2x 10/100/1000 RJ45 WAN, 1x 10/100/1000 MGMT port. | 40x 10/100/1000 RJ45 LAN, 2x SFP DMZ, 2x 10/100/1000 RJ45 WAN, 1x 10/100/1000 MGMT port. | 16x 10/100/1000 RJ45 LAN, 2x 10/100/1000 RJ45 WAN, 2x SFP, 1x 10/100/1000 MGMT port. | 16x 10/100/1000 RJ45 LAN, 2x 10/100/1000 RJ45 WAN, 2x SFP, 1x 10/100/1000 MGMT port. |
| Total Storage Capacity | 64GB MLC | 64GB MLC | 64GB SATA MLC | 64GB SATA MLC | 64GB SATA MLC |
